Description

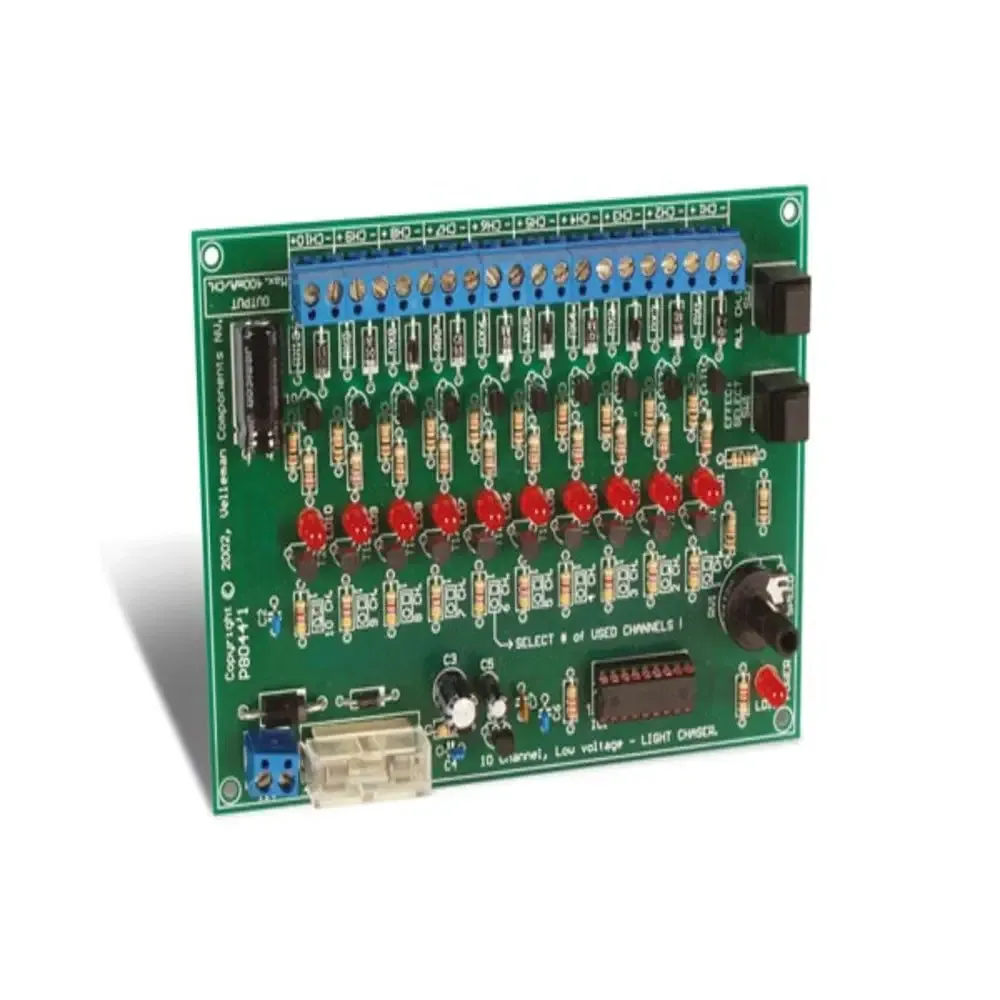

- this kit has 10, 12V/400mA outputs to control cold-cathode fluorescent lamps,
- light bulbs, LEDs and "solid state" relays, ...
- power supply: 12V DC * consumption: max. 4A * outputs: 12V DC / 400mA per channel (total : max 4A)
* for use with advertisement lighting, party lights, eye-catchers, in the disco... * 10 pre-programmed selectable light patterns with a push button * number of used channels is adjustable * adjustable speed * LED indication for every output * 12V operation possible for use in cars * the last used lighting effect is saved in non-volatile memory * options: ** adapter (90 - 260V AC input to 12V DC output/ 5.8A): PSS1255 ** power supply for cold-cathode fluorescent lamps: FLPS (300mm) or FLPS1 (100mm) ** cold-cathode fluorescent lamps: FL(xx) - (100 or 300mm) ** "solid-state" relays for controlling large loads (lamps): VR25SS1A (1 x NO, 240V / 25A) or VR3SS1A (1 x NO, 240V / 3A) * also available in mounted version:
* dimensions: 140 x 100 x 27mm / 5.5 x 3.9 x 1.1"
